Setup SonarQube with Jenkins

Note This post is part of the DevOps Journey

SonarQube provides continuous inspection of code quality through static analysis. Let’s integrate it with Jenkins for automated code quality checks.

Run SonarQube with Docker

Start SonarQube using Docker:

docker run -d --name sonarqube \
  -p 9000:9000 \
  -e SONAR_ES_BOOTSTRAP_CHECKS_DISABLE=true \
  sonarqube:latest

Wait for SonarQube to start (check logs with docker logs sonarqube), then access it at http://localhost:9000

Default credentials: admin/admin (change on first login)

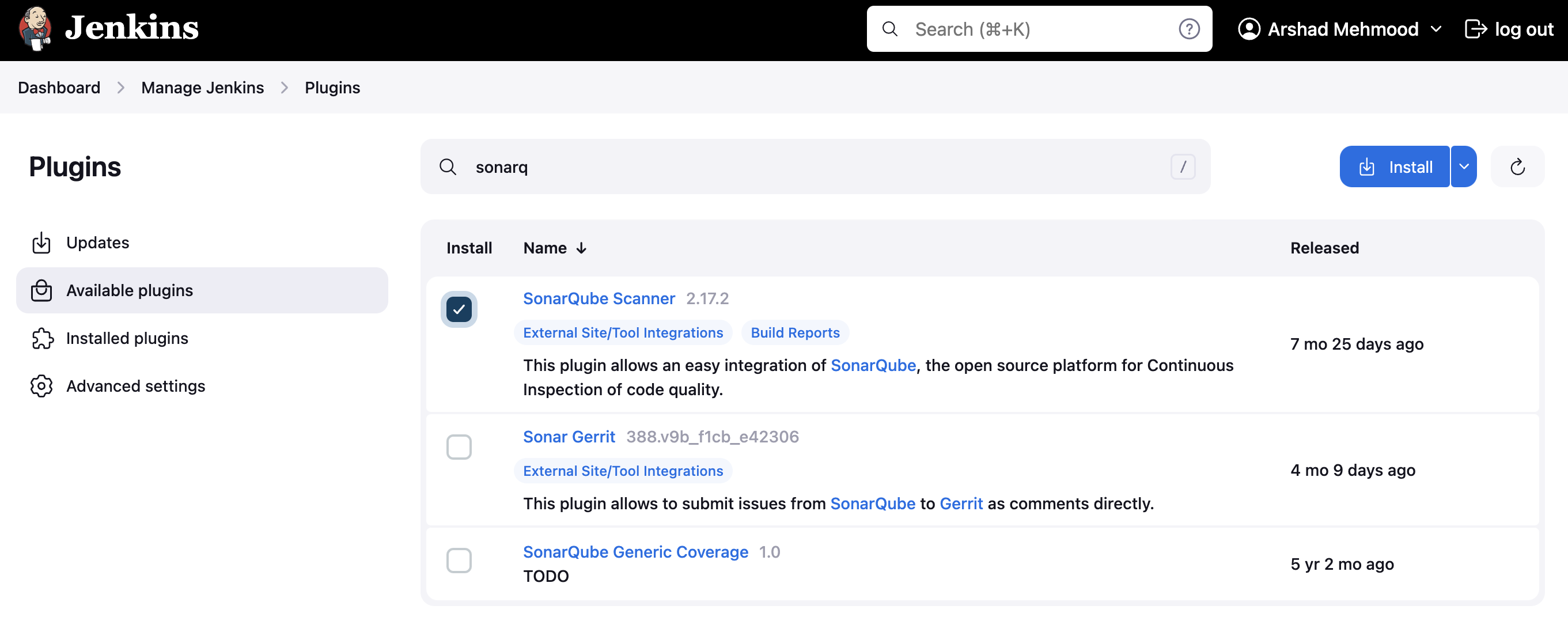

Install SonarQube Scanner Plugin in Jenkins

1. Go to Jenkins Dashboard → Manage Jenkins → Manage Plugins
2. Search for “SonarQube Scanner” plugin
3. Install and restart Jenkins

Configure SonarQube Server in Jenkins

1. Navigate to Manage Jenkins → Configure System
2. Scroll to “SonarQube servers” section
3. Click “Add SonarQube”
4. Configure:
   • Name: SonarQube
   • Server URL: http://localhost:9000
   • Server authentication token: (generate in SonarQube)

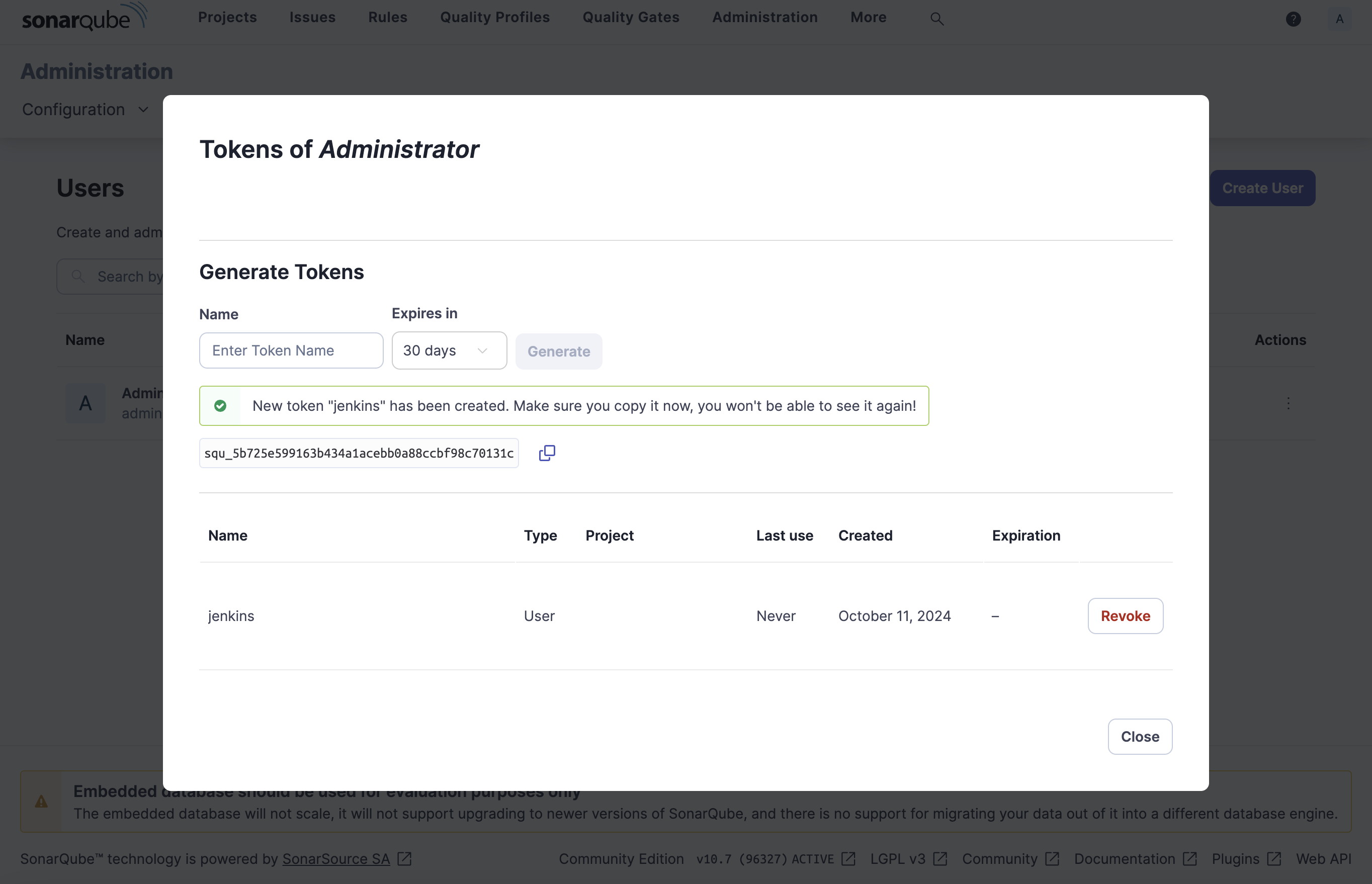

Generate SonarQube Token

1. Login to SonarQube (http://localhost:9000)
2. Go to User → My Account → Security
3. Generate a new token
4. Copy the token for Jenkins configuration

Add Token to Jenkins

1. In Jenkins SonarQube configuration, click “Add” next to Server authentication token
2. Select “Secret text”
3. Paste the SonarQube token
4. Give it an ID like sonarqube-token

Configure SonarQube Scanner

1. Go to Manage Jenkins → Global Tool Configuration
2. Scroll to “SonarQube Scanner”
3. Click “Add SonarQube Scanner”
4. Name: SonarQube Scanner
5. Install automatically from Maven Central

Create Pipeline with SonarQube Analysis

pipeline {
    agent any

    environment {
        SCANNER_HOME = tool 'SonarQube Scanner'
    }

    stages {
        stage('Checkout') {
            steps {
                checkout scm
            }
        }

        stage('SonarQube Analysis') {
            steps {
                withSonarQubeEnv('SonarQube') {
                    sh '''
                        $SCANNER_HOME/bin/sonar-scanner \
                        -Dsonar.projectKey=my-project \
                        -Dsonar.sources=. \
                        -Dsonar.host.url=http://localhost:9000 \
                        -Dsonar.login=$SONAR_AUTH_TOKEN
                    '''
                }
            }
        }

        stage('Quality Gate') {
            steps {
                timeout(time: 1, unit: 'HOURS') {
                    waitForQualityGate abortPipeline: true
                }
            }
        }
    }
}

Project-specific Configuration

Create sonar-project.properties in your project root:

sonar.projectKey=my-project-key
sonar.projectName=My Project
sonar.projectVersion=1.0
sonar.sources=src
sonar.language=java
sonar.sourceEncoding=UTF-8

Quality Gates

SonarQube Quality Gates ensure code meets quality standards before deployment. Configure thresholds for:

• Code coverage
• Duplicated lines
• Maintainability rating
• Reliability rating
• Security rating

The pipeline will fail if quality gate conditions aren’t met, preventing poor quality code from being deployed.
